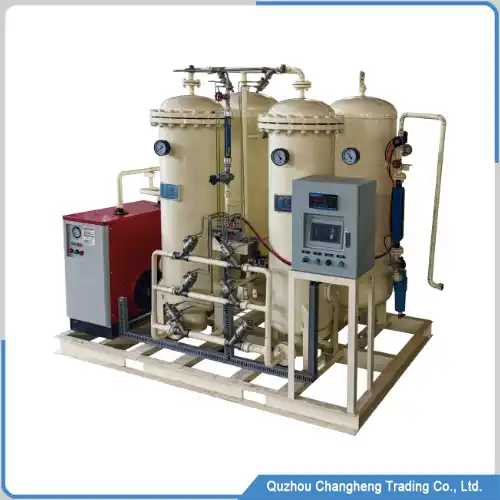

Equipment Overview
The industrial nitrogen generator is an automatic production line composed of screw air compressor, PSA generator, gas storage tank, oil removal filter, air freeze dryer and other parts. Each part adopts modular design, which is very easy to assemble.
This nitrogen machine uses PSA technology for gas separation, which not only provides stable nitrogen quality output, but also has irreplaceable advantages in cost savings.
We provide professional nitrogen solutions, whether your factory is small-scale production or a large-scale super factory, we can provide the perfect solution, with nitrogen purity and flow rate that can meet your requirements.
Characteristics of Industrial Nitrogen Generator
The air purification system of this device has multiple filters. Firstly, the freeze-drying machine condenses the moisture in the air into ice, which falls to the bottom of the machine and becomes water before being discharged. Secondly, the filter separates the oil and particles in the air again to prevent them from entering the nitrogen generator.

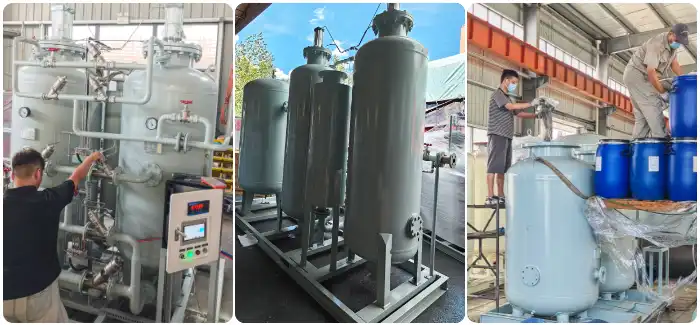

The carbon molecular sieve of the nitrogen generator adopts the aging frequency modulation filling process, and advanced filling technology can ensure its stable operation for more than 8 years.
PLC centrally controls the operation of the industrial nitrogen generator, the touch screen displays the operating parameters of the equipment, supports the connection of WiFi to achieve remote control, and analyzes the nitrogen purity, flow, dew point and other information.
All valves are fully automatic control, and the equipment does not require any workers to participate during operation. It also pays for 7 * 24-hour uninterrupted continuous production.
The benefits of having an industrial nitrogen generator in the factory
No need to purchase or rent temperature storage tanks, no need to pay expensive transportation and storage costs.
The factory does not need to rely on nitrogen suppliers, nor does it need to bear the risk of delayed delivery, price increases, or shortages.
The main cost of nitrogen is electricity, and users can independently control production costs. Producing nitrogen at the cheapest time of the electricity price every day can effectively control costs.
Nitrogen can be supplied at any time without waiting, transportation, or distribution.
Technical parameters of industrial nitrogen generator
- Nitrogen flow rate: 10-150M3/h
- Work pressure: Max 0.8 MPa
- Nitrogen purity: 99.5% -99.999%
- Nitrogen dew point: -40 ℃
- Power supply: 220V/50Hz
- Valve: Pneumatic
- Export pressure: 0.1-0.6 MPa
- Nitrogen production method: PSA technology
- Control mode: PLC centralized control
- Production mode: unmanned operation
- Delivery time: 45-55 days
Nitrogen generator factory in china
Other types of industrial machines
Vacuum brazing oven China Supplier
Vacuum furnace outline The vacuum brazing oven is vital production equipment for aluminum heat exchangers, mainly used for brazing assembled aluminum fins, plates, and cores. These products are widely used in aviation, aerospace, petroleum, chemical,…
Vacuum Brazing furnace of plate and bar aluminum heat exchanger
Product Description This is a vacuum brazing furnace used to produce plate and bar type heat exchangers. It has fully intelligent vacuum pressure and temperature control capabilities and is equipped with an inert gas protection…
Used aluminum brazing furnace for sale at a low price
The used aluminum brazing furnace uses non-corrosive NOCOLOK technology to braze aluminum products in a nitrogen-protected environment continuously. It was manufactured in 2016 and appears 95% new. Due to poor factory management, the factory went…
Aluminum brazing furnace for radiators and condensers
Machine Introduction This is a continuous production aluminum brazing furnace, which uses a mesh chain to transport aluminum products to achieve efficient production. It is one of the important brazing equipment for many aluminum products…
Working process of industrial nitrogen generator
- The air compressor collects air and stores it in a tank, usually with a pressure of 0.6mpa
- The air in the jar enters the freeze-drying machine to filter the moisture in the air
- After filtering out moisture, the air still needs to go through two non powered filtering devices to filter out residual oil and particles in the air
- After cleaning, the air enters the nitrogen generator, and oxygen and other gases will be adsorb on the surface of carbon molecules. Nitrogen can pass smoothly and then enter the next adsorption tower to improve the purity of nitrogen in one step
- Nitrogen with unqualified purity will enter the first adsorption tower again and be further purified
- Nitrogen with the required purity will enter the storage tank, and the valve of this storage tank will be connected to the equipment in the factory. Qualified nitrogen will be used in the factory
This is the complete workflow of a industrial nitrogen generator. If you would like to learn more about nitrogen generators, you can click the button below to contact our engineers.
Why choose ChangHeng brand nitrogen generator
- Our adsorption tower adopts a T-shaped structural design, which has high efficiency in the adsorption process and a longer service life of molecular sieves. This design is currently at the forefront of the air separation industry
- Pneumatic valves are from well-known Chinese brands, which can operate smoothly for 2 million times without any malfunctions. This means that the industrial nitrogen generator will not experience any malfunctions after 6-8 years of use
- All the tube connecting the valves are made of stainless steel. These tube not only have a beautiful appearance, but also have a long service life. They almost never need to be replaced
- Pneumatic components, PLCs, touch screens, and electronic control components are all from internationally famous brands such as Siemens, Yadeke, Mitsubishi, etc
Q & A
A: This industrial nitrogen generator has two adsorption towers,
A: With sufficient air pressure, it takes about 6-8 minutes to obtain qualified nitrogen gas
A: We can set up touch screen settings for Russian, Spanish, Portuguese, and other languages
A: There is no need to replace the carbon molecular sieve. If the operation time exceeds 1 year and the nitrogen purity decreases, you can add some carbon molecular sieves
