Aluminum brazing is a technology in modern industrial production, which is two different technologies: vacuum aluminum brazing and CAB aluminum brazing. However, their common feature is to weld multiple aluminum parts together

1. Vacuum aluminum brazing

This process usually involves brazing large-sized aluminum heat exchangers. Its characteristic is that the welding is firm and the surface of the aluminum material will not oxidize in a vacuum environment

This type of aluminum heat exchanger is mainly used in mining machinery, air compressors, generators and other fields

The disadvantage of this vacuum brazing technology is that the production efficiency is very slow, a complete brazing process takes about 3-4 hours, and the production cost is also very expensive

2. CAB aluminum brazing

This process usually produces small-sized aluminum radiators, which are suitable for large-scale production. Nitrogen protection is used throughout the entire production process, and the quality of the brazing material is stable

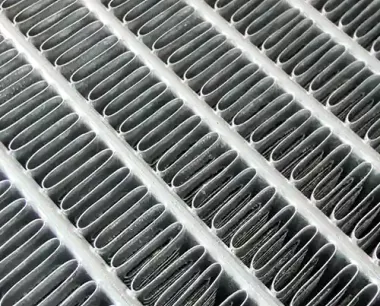

This CAB aluminum brazing is mainly used to produce products such as car engine radiators, condensers, and evaporators, which are characterized by their relatively light weight

The disadvantage of this process is that there may be virtual welding when producing large-sized heat exchangers, and its large external dimensions require a lot of workshop space to be occupied

  • Thermal Profiling Sales and Suppliers

    2024-06-07

    What is a Profiling It is a Thermal Profiling instrument that records the time and temperature of heat treatment work. The collected temperature data is crucial for smooth production, and engineers can refer to the temperature data to ensure product quality and maintain good consistency. Whether it is a large-scale food cooking factory, metal quenching or annealing, high-temperature brazing, or paint drying, they need at least one thermal analysis to verify whether the process is proceeding as expected, or continuously improve the production process based on tempera...

    Read More
  • Temperature Profiling Instrument For Industry Furnace

    2024-05-30

    Temperature Profiling working video Summarize Temperature Profiling is an advanced instrument designed specifically for industrial high-temperature applications, which can accurately measure and record the temperature distribution inside the furnace. This device typically includes multiple channels, each of which can independently collect temperature data. The temperature profiler can wirelessly transmit the collected temperature data to connected computers or mobile devices through the built-in WIFI communication module. Operators can remotely monitor the temperat...

    Read More
  • Brazing furnace supplier in China

    2024-05-26

    Furnace Overview As a brazing furnace supplier in China, we are committed to providing high-quality mechanical equipment and comprehensive technical services to global aluminum radiator manufacturers. This brazing furnace is designed specifically for aluminum brazing processes and can meet production needs of different scales and demands. Customers favor it for its high efficiency, energy conservation, environmental protection, easy operation, and stability and reliability. In addition, we also provide customized solutions to meet the special process requirements of our...

    Read More

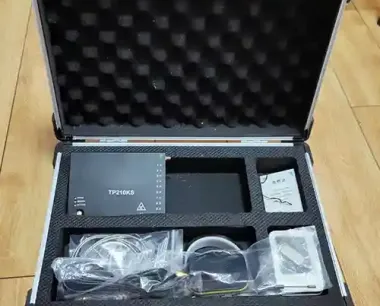

  • Furnace Temperature Logger Equipment From China

    2024-04-07

    Equipment Overview The Furnace Temperature Logger is a modern temperature monitoring device that can collect and record real-time temperature data inside the furnace. This type of instrument is usually equipped with sensors that can accurately measure and track temperature changes, ensuring that temperature control during the production process is within the optimal range. Through the wireless network (WIFI) transmission function, the furnace temperature recording instrument can send real-time data to computers or other intelligent devices, allowing operators to...

    Read More

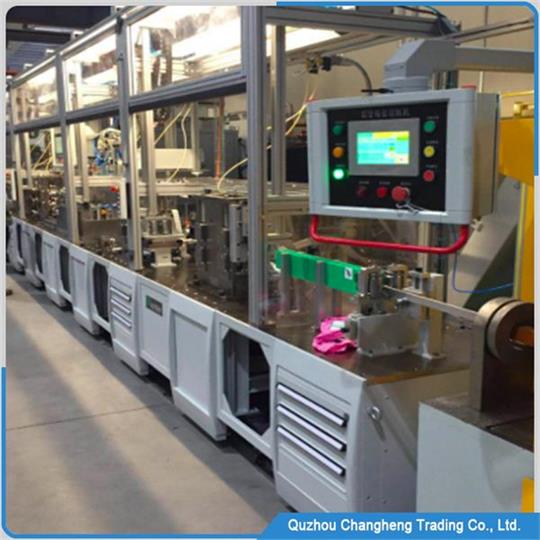

  • Radiator tube machine

    2024-03-31

    Machine Overview The radiator tube machine realizes the rapid conversion of aluminum foil materials into radiator tubes through an efficient production process. The machine first presses the aluminum foil into the desired tubular structure through a roll forming process. Then, the joints of the pipes are welded firmly using high-frequency welding technology to ensure the sealing and structural strength of the pipes. The welded tubes are again put through a stick forming process to adjust to a precise O-shaped cross-section. Finally, the flying shear device perfor...

    Read More

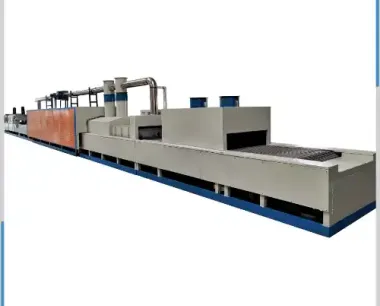

  • mesh belt furnace for continuous heat treatment

    2023-07-29

    Product Description The mesh belt furnace is a continuous large-scale production furnace designed specifically for industry, with a maximum temperature of 1150 ℃. It is widely used in various heat treatment production, including metal quenching, stress relief of parts, annealing, tempering, etc The furnace is designed with multiple heating zones for independent temperature control, which can accurately control the temperature of each independent zone, providing effective assurance for high-quality production The mesh belt furnace can provide inert gas protection ...

    Read More

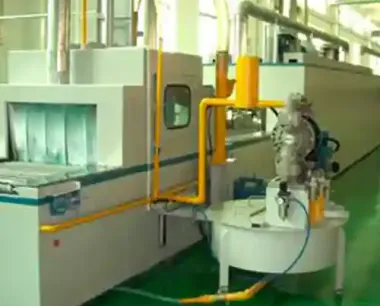

  • controlled atmosphere brazing furnace of aluminum

    2023-07-05

    CAB furnace outline The controlled atmosphere brazing furnace (CAB furnace) is a specialized equipment used for aluminum brazing, which can provide a constant temperature and atmosphere to ensure the effectiveness and stability of aluminum brazing. Aluminum brazing is a process of connecting aluminum alloy parts into a whole, widely used in industries such as automobiles, aviation, and air conditioning. The quality of aluminum brazing directly affects the performance and lifespan of the product, so it needs to be carried out under specific conditions The main...

    Read More
  • furnace brazing process of aluminum radiator and condenser

    2023-06-26

    furnace brazing process outline This is an aluminum furnace brazing process using atmosphere protection, which can produce brazing aluminum products on a large scale and has achieved a reduction in production costs, With the continuous development of industry, this aluminum brazing process has been widely used in various fields of aluminum products, such as automotive radiators and condensers Industrial aluminum plate and bar heat exchangers, aluminum pipes for air conditioning systems, and other parts that require welding, etc We have 19 years of work experience in...

    Read More

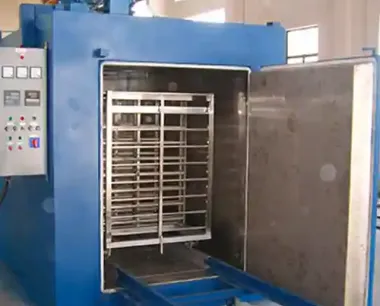

  • mini furnace machine for brazing aluminum heat exchangers

    2023-05-11

    The Mini Furnace Machine is a small machine specifically designed for aluminum brazing. Specializing in the production of aluminum intercoolers, aluminum condensers, plate and bar heat exchangers, and other products, Compared to continuous aluminum brazing furnaces, the Mini Furnace Machine has many advantages. 1, It is very cost-effective. For small factories, small furnaces are cheap and can meet all production needs, 2, The small size of the small furnace does not require a lot of space, which is also a very good thing for small factories 3, This brazing furnace equipme...

    Read More
  • controlled atmosphere brazing furnace for aluminum radiator

    2023-04-29

    This Controlled atmosphere brazing furnace is a special type of brazing furnace that can ensure welding quality by controlling the atmosphere and is widely used in fields such as automobiles, industry, aerospace, etc. Its main characteristic is its ability to operate at high temperatures. Normally, the maximum temperature of the controlled atmosphere brazing furnace can reach 700 °C, and the normal operating temperature is approximately 615 ℃, This temperature range can effectively ensure the quality of welding products. Thus achieving high-quality and rapid produc...

    Read More

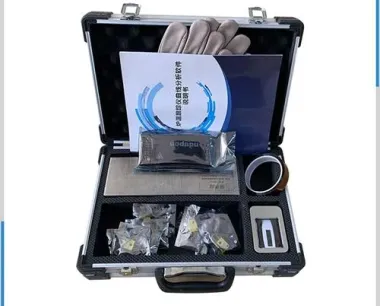

  • industrial oven temperature recorder for sell
