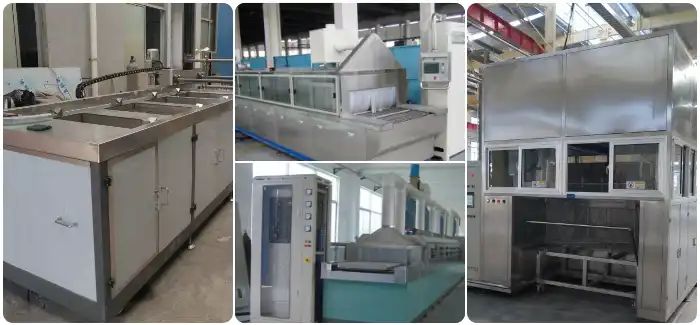

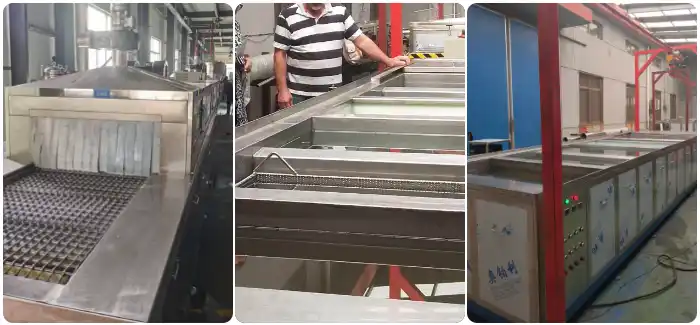

Machine Overview
This is an industrial equipment similar to an ultrasonic cleaning machine. Its main function is to clean the grease on the surface of metal parts. Ordinary cleaning machines cannot thoroughly clean stubborn grease on the surface of parts. This machine uses an ultrasonic generator to convert high-frequency vibration, allowing metal parts to have slight vibrations during the cleaning process, achieving the goal of thorough cleaning.
Our ultrasonic machine is applied in the industrial field, and its working size is specially prepared for the production of automobile radiator. The length of the sink is 1000mm, the width is 500mm, and the depth is 600mm. This size can help all automobile radiator and truck radiator in the market, as well as radiator of engineering vehicles.
Characteristics of Ultrasonic Cleaning Machine
- Deep and thorough cleaning
It utilizes the high-frequency vibration of ultrasound to effectively clean all positions of complex metal parts, such as grooves, deep holes, and complex geometric shapes. This machine can thoroughly clean them, solving the problem that general cleaning machines cannot clean parts.
- Highly consistent surface of parts
During the cleaning process, all parts are usually placed in the sink at once without any additional operation. Just wait for about 30 minutes, and all parts will be cleaned thoroughly. Each part will maintain good consistency, and there will be no residue on the surface of any part.
- Wide compatibility
This ultrasonic cleaning machine uses ultrasonic vibration to clean metal parts such as iron, aluminum, copper, stainless steel, titanium alloy, etc. It can also clean ceramic, plastic, glass and other parts. The application scenarios of the machine are very wide.
- Complete automated production
This machine is controlled by PLC, and users can freely set its heating temperature, cleaning time, ultrasonic vibration frequency and other parameters to meet the cleaning requirements of different parts. Moreover, this cleaning process is fully automatic.
Technical parameters of Ultrasonic cleaning machineine
- Vibration frequency: 20-40kHz
- Power supply: 380V/50Hz
- Heating power: 10-100kw (designed according to your requirements)
- Sink size: 10*10*10cm (designed according to your requirements)
- Number of sinks: 3 pieces
- Stainless steel baskets: 6 pieces
- Appearance material: stainless steel
- Temperature control: thermocouple
- Sewage filtration: Yes
- Maximum temperature: 70℃
- Packaging type: wooden crate
- Minimum order quantity: 1 piece
- Other requirements: Accept customization
- Delivery time: Approximately 45 days
Design of Ultrasonic Cleaning Machine
In the factory producing automobile radiator, the ultrasonic machine is usually made of stainless steel. This machine will add some detergent during the process of cleaning parts to improve the cleaning efficiency. Ordinary materials cannot resist the chemical corrosion of industrial detergent, so it must use stainless steel materials.

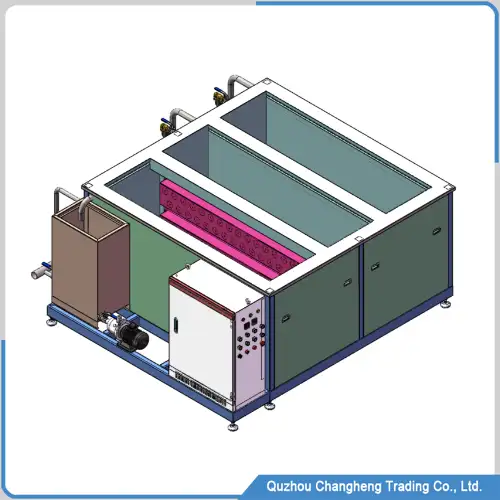

This machine has three different function sinks to improve cleaning efficiency, and the functions of each sink are as follows.
The first sink
It has a heating function, and it takes about 25-35 minutes to heat the water temperature from 0 to 70 degrees Celsius. The large capacity of the sink may require more time.
It has the functions of sewage circulation and filtration. With the passage of cleaning time, there will be floating oil stains on the water surface. These oil stains flow into the filtration tank through the water circulation system, keeping the water in the tank clean.
It has ultrasonic vibration function. When all parts are placed in the sink, the ultrasonic oscillator will emit a high-frequency vibration of 40KHz, allowing the metal parts to fully contact with water for efficient cleaning.
The second sink
This sink has a heating function, and its heating efficiency is the same as the first sink of Ultrasonic cleaning machine.
It has the function of bubbles. There is a tube at the bottom of the sink. There are many holes in this tube.
Compressed air will come out of these holes, making water produce many bubbles, thus improving the cleaning efficiency.
This sink does not have ultrasonic and sewage filtration functions.
The third sink
This sink only has bubble function, it does not have heating function, nor does it have ultrasonic and sewage filtration functions, because the main function of this sink is to clean the residual detergent on the surface of the parts.
Why choose our Ultrasonic cleaning machine
We accept customized services for industrial ultrasonic machines of all sizes. Whether your needs are indirect cleaning requirements or continuous large-scale production requirements, we can provide you with excellent solutions.
The factory has nearly 20 years of work experience and rich experience in the ultrasonic manufacturing industry, which can occasionally meet all personalized needs of customers.
Our factory has large industrial processing equipment, and we can complete all the work from A to Z within the factory, achieving effective cost control. Under the same quality conditions, our ultrasonic machines are more competitive in price.
If your country has strict requirements for environmental protection, we can prepare a set of sewage purification machines for you. The sewage from the ultrasonic cleaning machine can be purified and reused.
Final summary
We are an excellent supplier from China with extensive experience in industry. If you are really looking for an industrial ultrasonic cleaning machine, then choosing us may be a good choice. We can not only increase competitive prices, but also customize it according to your requirements.
If you would like to learn more details about this machine, you can submit your email in the form at the end of this article, and our engineers will contact you. Thank you for reading this article.
