  • Aluminum tube cutting machine of radiator and condenser

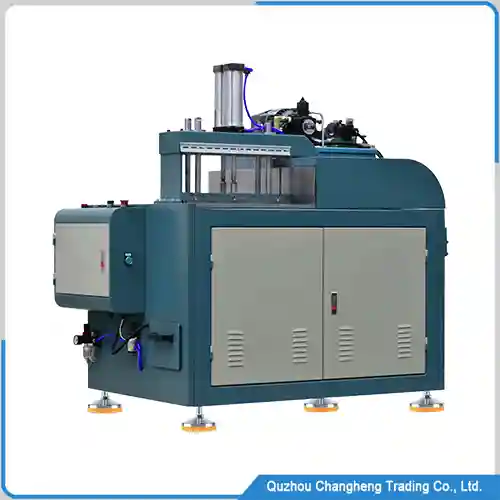

Aluminum tube cutting machine of radiator and condenser

Sawing height: 120CM

Spindle speed: 2880r/min

Saw blade motor power: 3KW

Overall dimensions: 170*100*150cm

Machine outline

This is an aluminum tube cutting machine, which is essential in the production of automotive aluminum radiators and condensers.

Through continuous optimization of the equipment structure and updating of the control system by our engineers, the quality and production efficiency of our machines have been well guaranteed.

The sawn blade is made of hard alloy steel, and the aluminum tube is sawn without burrs; our latest generation of machine has been equipped with a device for aluminum scrap recycling to meet strict environmental requirements.

Equipment advantages

  1. Drive

We utilize a 3kW motor with a speed of 2880 revolutions per minute to deliver robust power to the machine.

  1. Saw blade

The blade is from YG8 and HWJ materials, which are durable.

  1. Control

There are two control methods to choose from: foot control to control the operation and stop of the machine, and manual button control

  1. Aluminum scrap recycling:

This aluminum tube cutting machine is equipped with a vacuum suction device to remove aluminum scrap and automatically collect it. This equipment will not cause any pollution to the environment

  1. Safety production

This equipment has safety barriers, ensuring that workers do not come into contact with the saw blade during the production process. Consequently, there are no safety hazards during normal production.

  1. Quick size change

The device has already been installed with a scale, allowing engineers to quickly adjust the length and size of aluminum tubes based on this scale, thereby ensuring improved production efficiency.

  1. Production quality

This aluminum tube cutting machine has undergone several generations of updates, far surpassing competitors, and the sawn aluminum pipes are free of burrs

Aluminum tube cutting machine video

Aluminum tube cutting machine Technical Parameter

Projectspecifications
Saw blade stroke 400CM
Saw blade size405CM
Maximum sawing width420CM
Sawing height120CM
Spindle speed2880r/min
Saw blade motor power3KW
Overall dimensions170*100*150cm
tube cutting machine
cutting Aluminum tube type
Type B
type 0
type C
type O
rotundity
rectangle
Microchannel
harmonica-shaped tube

Working principle

The position of the saw blade installed on the tube cutting machine is independently designed and can be quickly replaced. The machine’s control system utilizes a PLC drive.

The working principle of this machine is that workers place pipes on the machine’s working platform,

The workers placed the aluminum tubes flat according to the length and size requirements,

Press the start work button, and the machine will automatically cut all aluminum pipes at once, and the saw blade will return to its original position,

The factory removes the sawn pipes and places them into boxes, which completes the entire production process of the aluminum tube-cutting machine.

tube cutting machine

Aluminum tube cutting machine Application scenarios

The purpose of designing this machine is to cut aluminum tubes for car engines radiators. This is because the aluminum tubes of the radiator cannot have burrs. If there are burrs, it will be very troublesome to assemble the aluminum core of the radiator. The burrs will hinder the tube from being smoothly inserter into the hole.

When we finished designing this machine and put it into everyday use, we found that its application is pervasive and can be used in many industries.

For example, a factory that manufactures doors and windows made of aluminum alloy materials.
Aluminum heat exchanger factories that produce panels and bars need this machine to cut aluminum materials.

There are numerous aluminum tubes in the automotive air conditioning industry. The cutting of this aluminum foil must be free of burrs, so this cutting machine is very suitable for producing these aluminum tubes.

There are still many industrial fields where this machine can be used. If you’re looking for an aluminum tube cutting machine, our equipment may be the best choice for you.

It is not only safe to use, but it also has a long lifespan. By incorporating one of our servo-driven feeding devices, we can achieve a fully automated production mode that eliminates the need for manual operation.

If your factory requires a cutting device for large-scale production tasks, then please believe me, this machine is your best choice.

Q & A

Q: What is the exterior color of your machine?

A: The metal plate of the work platform is stainless steel, and the appearance of other parts is default blue.

Q: Which tubes can this machine cut?

A: This machine can handle tubes and rods made of aluminum, copper, and other materials in various shapes.

Q: What is the longest size of this machine?

A: Our machine has a maximum length of 6 meters.
