Fin die supplier of Heat exchangers in China

neme: fin die

Hole array:25.5*23mm

Hole diameter: (3/8’’) 9.53mm

line number: 12 rows

Overall dimension:1050*540*240mm

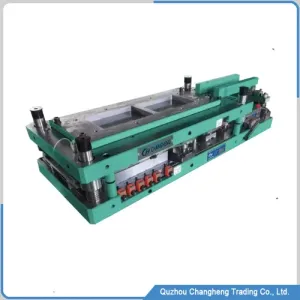

Heat exchanger fin die

The Heat exchanger fin die, also referred to as fin progressive dies, are dies that are divided into a number of evenly spaced stations depending on the workpiece being processed. At each station, one or more fundamental stamping operations are set up to finish processing a particular portion of the stamping workpiece.

The material to be processed must be cut into strips of a specific width beforehand, and a specific feeding technique must be used to feed the material one step at a time.
A finished stamping workpiece is obtained after punching each hole individually.

Blanking, bending, drawing, shaping, and other processes can be carried out constantly in the ten pairs of fin progressive dies.
Using a set of Continuous fin mold and fin progressive dies, stamping may be done regardless of how intricate the shape of the stamped object is or how many stamping operations are involved.

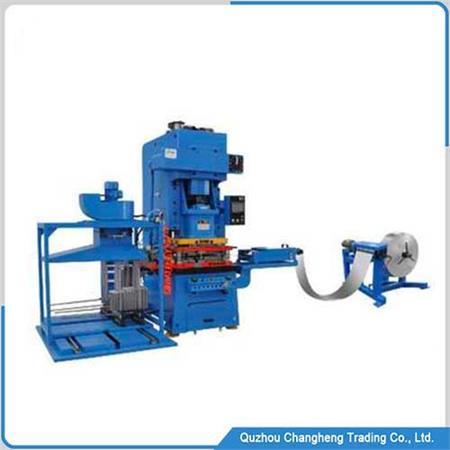

progressive metal stamping

application field

Fin die is a continuous stamping die that punches raw materials such as aluminum foil, copper foil, and stainless steel foil into precision molds of various shapes,

With the development of technology, people’s demands for energy conservation and environmental protection are constantly increasing,

Fin die is transitioning towards high precision and diversification, producing a range of products such as stretched fins, curved fins, elliptical tube fins, and flat tube fins.

This type of fin can be applied to industrial condensers, household convective heat exchangers, automotive evaporators, and other fields

Fin Die Raw Materials

part nameRaw materials
Louver partsSKH51
Punching needleSKH51
Small mold plateCr12MoV
big mold plateEN C45
fin progressive die
fin forming mold

Technical parameters

  • Continuous production: Yes
  • Hole array:25.4*23mm
  • Fin die width:180mm
  • line number: 12 rows
  • Overall dimension:1050*540*240mm
  • Hole diameter: (3/8’’) 9.53mm
Heat exchanger fins

Our Advantages

1, The average working experience of professional engineers is up to 16 years

2, With powerful fin die design capabilities, we can simultaneously shape multiple apertures of different sizes on a single mold.

3, One-stop precision machining parts, 95% of mold parts come from our factory’s independent production

4, The intelligent fin mold structure enables non-destructive adjustment of units such as stretching, flanging, and slitting, meeting the process requirements of different sizes.

5, Delivering high-quality fin molds to 60 countries worldwide, with customer satisfaction of 99.5%

6, Using high-quality steel, mold parts can be easily replaced, and its service life exceeds pressing more than 400 million times.

Heat exchanger fin die video

Q & A

Q: What is your fin dies package?

A: Our dies are packed in wooden cases

Q: What is the delivery time of your fin die?

A: Our die delivery time is 50-62 days

Q: Which stamping machine is your die suitable for?

A: Our molds are suitable for more than 90% of stamping machines, You can contact our engineer and provide pictures of your stamping machine

Q: Can you make your fin progressive dies according to my design

A: Yes, each of our molds is customized according to customer requirements
