Product Description

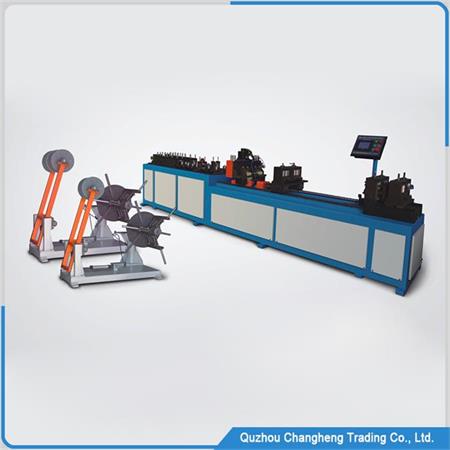

This device is a soft Harmonica pipe cutting machine, a fully automatic production line that integrates straightening and cutting.
It has two workstations working simultaneously. First, multiple sets of rollers straighten the microchannel tubes and then cut them without burrs.
The tubes’ length is controlled by servo motors, which effectively and accurately control the length and preserve good consistency.
The machine does not produce noise during regular operation, and its primary power consumption is a 2.0kw servo motor.
Harmonica pipe cutting machine technical parameter
| ITEM | DATA |
| Delivery time | 46 days |
| Power Supply | 380V/50-60Hz |
| power Voltage | 3.5kw |
| Machine weight | 3500kg |
| Overall dimensions | 450*85*170cm |
| Drive mode | servo & pneumatic |
| Production speed | about 44/min |
| Uncoiling/Feeding | Automatic |
| processed | 2 pcs / time |
| Working size | width 12-32mm thickness 1-3mm |
Harmonica pipe cutting machine Working principle
1, Install the aluminum tube of the microchannel of the coil into the uncoiling machine and lock the fixing device,
2, Extend the microchannel aluminum tube through the designated positions of multiple sets of rollers to the position where the aluminum tube is tighten.
3, The tube cutting machine clamping tool is connecting to a servo motor-driven screw, which can accurately control the transmission length of microchannel aluminum tubes
4, When the tool driven by the servo motor tightens the aluminum tube of the microchannel and the length set by the installation program is transmitt in place,
the cutting tool will automatically work to cut the aluminum tube
5, The cut microchannel aluminum tube will fall freely into the container, and the production process will end.
The machine will automatically cycle. There is no need for worker participation
Tube-cutting machine advantage
1, The main driver is a servo motor, which can accurately control the length of each microchannel aluminum tube, effectively ensuring the consistency of aluminum tube quality
2, This device has a 7-inch touch screen that allows workers to set the machine’s work program fully automated control of the machine,
achieving unmanned production and saving production costs for the factory
3, This machine is equipped with multiple sets of rollers and has achieved full-range straightening of microchannel aluminum tubes,
including upper, lower, left, right, and so on, providing further assurance of the quality of the aluminum tubes
4, This pipe-cutting machine has two workstations working simultaneously, which can further improve production efficiency
