Radiator stamping die | radiator header plate mold

Processing customization: Yes
Name: stamping die
Machine used: stamping machine
Process: CNC, slow wire
Delivery time: 45 days



header plate mold

The radiator Stamping die is according to customer requirements customized in full size and various types, We are very professional in the stamping mold field of automobile radiator head plate

Our scope of service

  • Radiator head plate mold
  • intercooler head plate mold
  • Condenser head plate mold
  • Forming mold
  • Drawing dies
  • Punching die
  • Cutting die
  • Drawing dies for laminated evaporator
  • punching die
  • head plate stamping die

radiator Stamping dies particulars

Die application: it is used in cooling system parts, copper, aluminum, iron, and other materials
Mold features: small size, fast stamping speed, high positioning accuracy, low price;
Mold requirements: customized according to customer requirements

Stamping die technical data

  1. Product name: radiator punching die
  2. Main functions: production of head plate, side plate, and other sheet metal parts of automobile radiator
  3. Machine used: various presses
  4. Warranty period: 12 months, or 300000 stamping times
  5. Delivery time: 40-45 days
  6. Mold size: customized according to the customer’s part design
  7. Mold material: MD40, MC53, HSS, SKH-9, SKD11, etc
  8. Certificates: ISO9001, TS16949, CE, etc
  9. Die part accuracy:+/-0.01mm
  10. Formwork flatness:+/-0.01mm
  11. Packing: wooden case

Our success stories

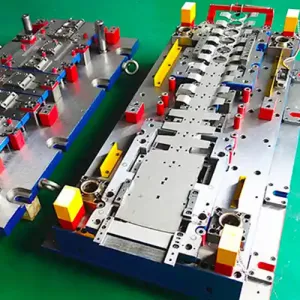

radiator Stamping die

radiator stamping die details

radiator Stamping dies

punching die can produce these parts

aluminum header

Q & A

Q: What is your mold warranty time?

A: Our mold warranty period is 12 months, or your mold has produced 300000 parts, whichever comes first is the choice.

Q: When the mold is manufactured, will you test it?

A: Yes, we will test this mold in the factory in China and make samples for you to check all dimensions.

Q: What sizes do you have for making molds?

A: We can make head plate molds for aluminum radiators of any size.
