Machine Overview
the radiator fin roller machine is the key machine for processing condensers, radiators, and intercoolers; its total power is 3.5kw. The fin roller mold is made with high precision. The servo motor counting controls the length of the fin. The length of the machine is more than 5 meters, and the production is 120 meters per minute
Special processing equipment for heat transfer fins. Compact heat exchanger products with such heat transfer fins have been widely using in ships, automobiles, compressors, engineering machinery, mining machinery, air conditioner aviation, the military, and the hydraulic oil cooling industry.
Fin roller machine advantage
Compared with similar products, our oil more astonishing fin roller machine has the following advantages:
1. Stepless adjustment. It can realize step-less adjustment and break through the limitation of fewer gears of traditional mechanical speed regulation.
2. The structure is compact and easy to operate. The traditional structure has been optimized to be more reasonable and convenient.
3. High efficiency, low power consumption, and stable performance. Improving precision, reducing wear, and optimizing structure improve the overall efficiency of the fin roller machine tool and stabilize its performance.
4. Convenient maintenance and low maintenance cost. The optimization of the structure makes the parts of the machine tool the most simplified so that the maintenance is convenient and the maintenance cost is low
Fin machine product quick details
| ITEM | DATA |
| Metal material | aluminum 3003 |
| Material thickness | 0.06-0.15mm |
| Fin width | 16 / 18 / 24 / 32 36 / 48 / 56 / 68 |
| fin height | 4.5-12mm customized |
| Dimension: | 460*65* 170cm |
| fin Pitch | 2-4.5mm |
| Fin type | with lower |
| motor power | 2.2kw |
| speed | 0-120M/min |
| Machine weight | 1.85T |
Support and Services
Customize the size of the roller mold to meet the special requirements of your radiator or condenser.
We provide installation and technical training services for fin machines. If you purchase a machine from me, this service is free, but you must pay for the engineer’s travel expenses.
No matter where you are, we can provide door-to-door transportation for machines or general sea freight services.
We provide free, vulnerable parts for the machine so that this fin roller machine can last for 3-5 years. In the future, we can also provide machine parts; you only need to pay for air express delivery.

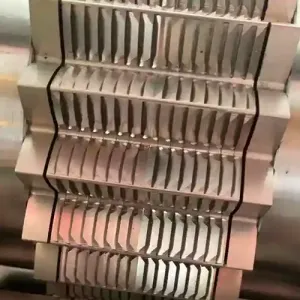

Fin Roller Mold
The key components of the roller mold are made of SDK51 and tungsten steel as raw materials, which have strong wear resistance. CNC machines manufacture each blade,
Each roller mold consists of many blades, and usually, multiple CNC machining services providers provide manufacturing services for us to speed up delivery time and provide customer satisfaction
The gap between the two rollers is only 0.05-0.08mm, and the maximum tolerance will not exceed 0.002mm, which is currently the highest technology in this industry
The bearing of the roller adopts a split type taper type, which can maintain a tranquil operation during high-speed production
Fin roller machine working video
Q & A
A: The control system of this roller fin equipment is PLC and touch screen
A: The delivery time of this machine is 50 days
A: This fin machine is competitive in price, beautiful in appearance, and fast in production. India, Pakistan, Brazil, Russia, Egypt, and Thailand all have our fin machines
