nocolok brazing furnace manufacturer in china

Catalog: Aluminum Brazing

name: nocolok brazing furnace

country of origin: china

Customer customization: yes

Tunnel size: customized

Production type: Continuous

Product Details

nocolok brazing furnace summarize

We are nocolok brazing furnace manufacturer. The factory manufactures 15-20 continuous brazing furnaces every year and uses NOCOLOK technology nitrogen to protect continuous aluminum brazing

Our brazing furnace is mainly applicable to the welding of aluminum products. It is also widely used in automobile radiators, aluminum condensers, aluminum intercoolers, laminated evaporators,

aluminum oil coolers for automobile and industrial use, and other types of aluminum products

Our company provides a one-stop service, designing and manufacturing brazing furnaces according to customer’s production requirements, door-to-door transportation service.

installing and debugging nocolok brazing furnace, training customers’ engineers and workers, and manufacturing high-quality aluminum products

Technical Data

ITEMVALUE
Touch screen size10.1 inches
Control typePLC
Heating typeelectric
natural gas
(optional)
Atmosphere protectionnitrogen
Temperature zones8-16
(optional)
FluxNOCOLOK
aluminum brazing furnaces
brazing welding furnace

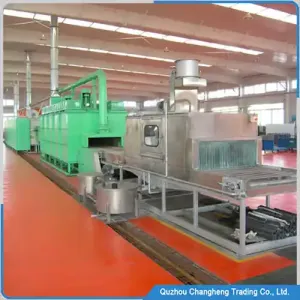

nocolok brazing furnace Working principle

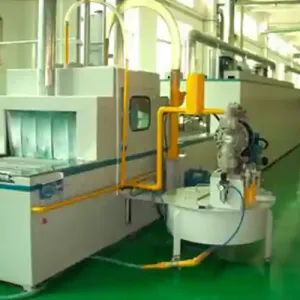

1, This NOCOLOK brazing furnace is equipped with a fully automatic spraying device for brazing flux. A tank made of SS304 material can hold 500 liters of water. The motor continuously stirs the brazing flux, and the diaphragm pump sends the liquid to the pipeline to spray on the surface of the aluminum product. Excess brazing flux will circulate and return to the container

2, When the aluminum product is sprayed with brazing flux, it will be automatically transferred to the drying furnace to dry the excess moisture. This process does not require worker supervision, and the machine will complete this task fully automatically

3, When the aluminum product has been dried, it will be automatically transferred to the workers’ operation area, Here, workers need to inspect the aluminum product and place it on a dedicated tool to ensure that the aluminum product smoothly enters the brazing area

4, When the aluminum product has been brazed, it will pass through 4-6 temperature control zones, and their temperature is usually 600-625℃, During this process, the brazing flux sprayed on the surface of the aluminum product will melt, welding two or more parts together

5, When the aluminum product that has been brazed enters the cooling zone, the heat from the aluminum product is sucked out by the fan to ensure a suitable working environment is maintained indoors. The entire brazing and cooling process does not require any worker to take care of it

6, The entire brazing process has been completed here. At the end of the nocolok brazing furnace, a worker needs to move the aluminum product to a fixed location for storage

Our nocolok brazing furnace success stories

nocolok brazing furnace manufacturer

Q & A

Q: How many cubic meters of nitrogen does this brazing furnace need per hour?

A: The working dimensions are different, and the use of nitrogen is also different, The size of 800*250*10000mm brazing area is about 60-80 cubic meters of nitrogen per hour

Q: Can this furnace be heated with natural gas

A: Yes, We can make brazing furnace with natural gas as heating, but the price of the brazing furnace will be different, You can contact our engineers for more details

Q: What technical support can you provide for brazing furnace

A: If you buy the brazing furnace, we’ll train your engineers, install it, and offer after-sale support in addition to offering all technical assistance.

Q: What types of brazing furnaces can you provide

A: We are nocolok brazing furnace manufacturer, and we have the ability to design and manufacture, Various aluminum brazing furnaces can be manufactured
